I was tasked by Andy Walmsley to fully draft and 3D model his scenic design based off of his SketchUp Model.  This was his 1st version, that was sadly scrapped in the last days due to budget concerns.  Andy's Stage Design was to be a Hollywood Hills Mansion Pool Area where the audience could join the bands onstage.
      I had 9 days to put this package together and get it approved and sent off to all other departments so they could start their pre-show prep.  The Drafting Package had: 18 Drafting plates and 2 Painters Plates with the full 3D Model.
     Below are Drafting and 3D Model Renders all done in Vectorworks24.

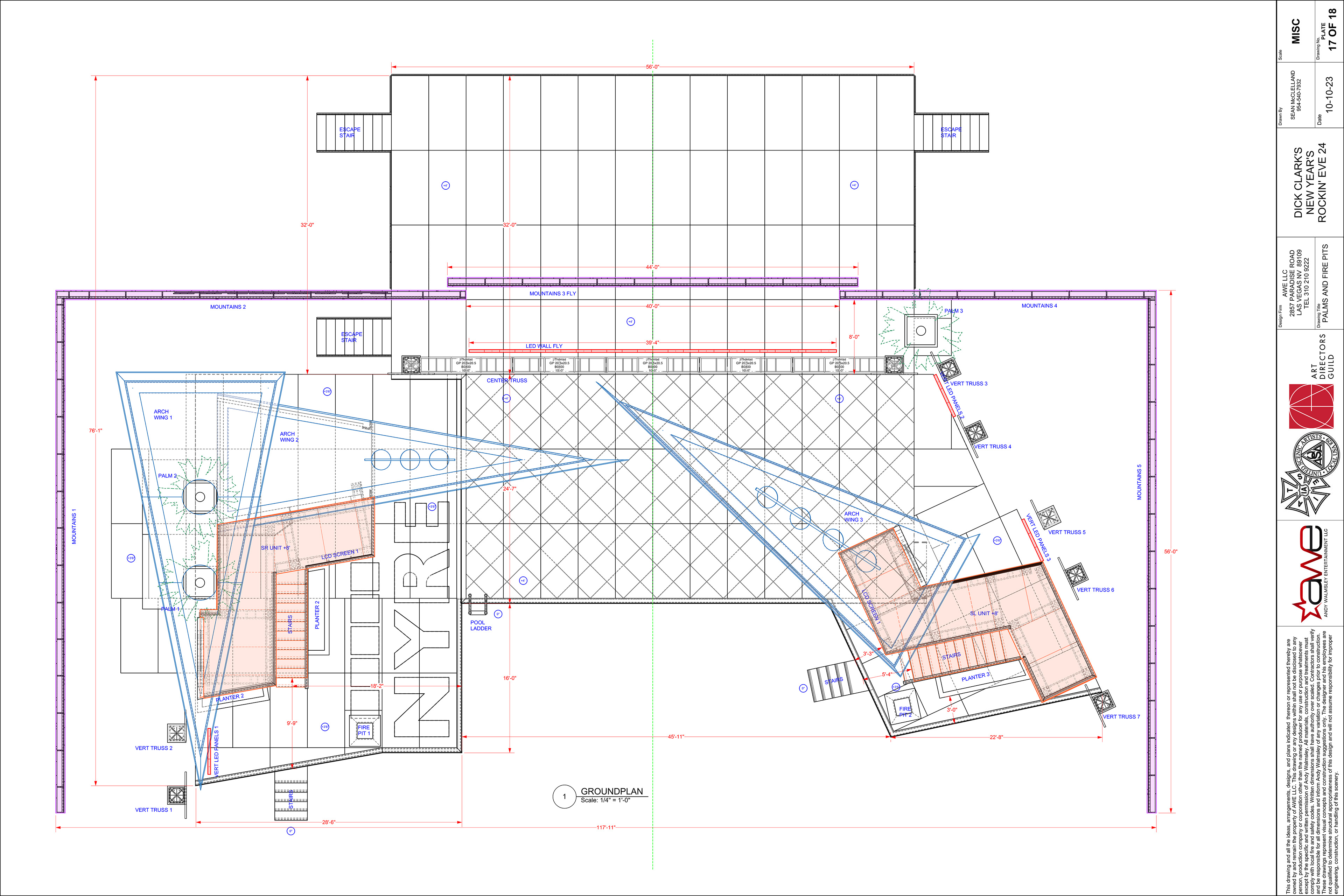

GROUNDPLAN
GROUNDPLAN

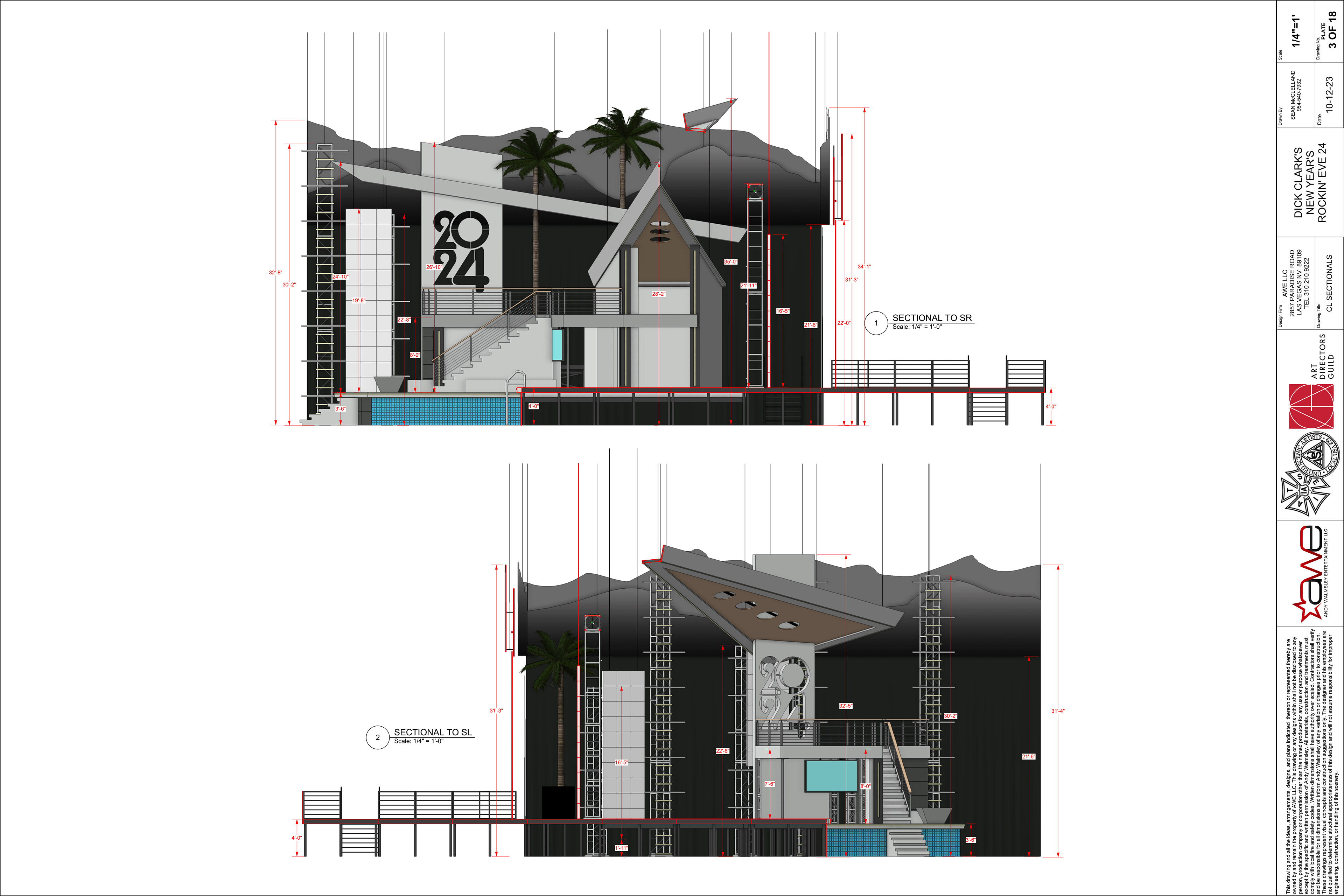

SECTIONALS
SECTIONALS

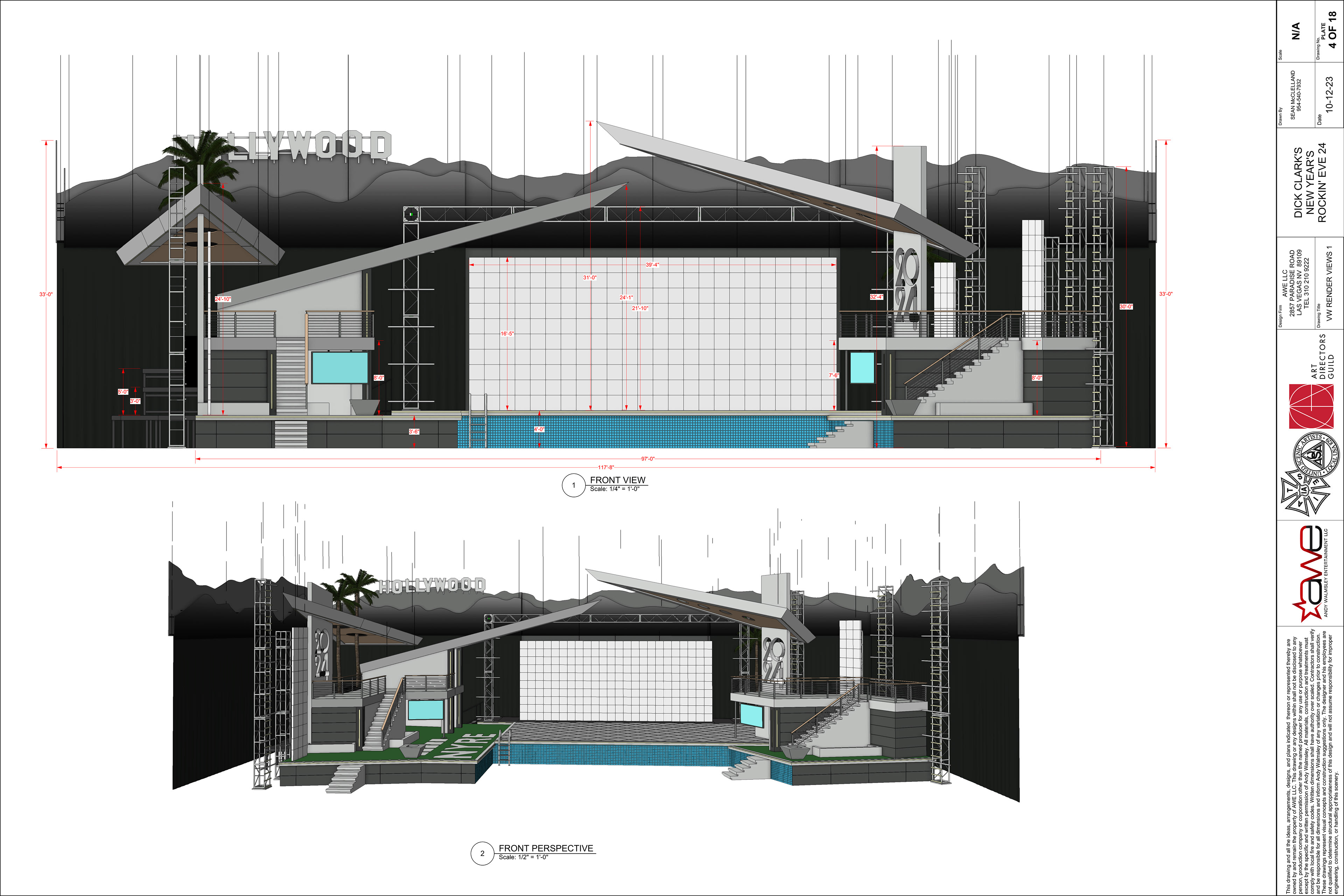

FRONT RENDERS
FRONT RENDERS
SIDE PERSPECTIVES
SIDE PERSPECTIVES

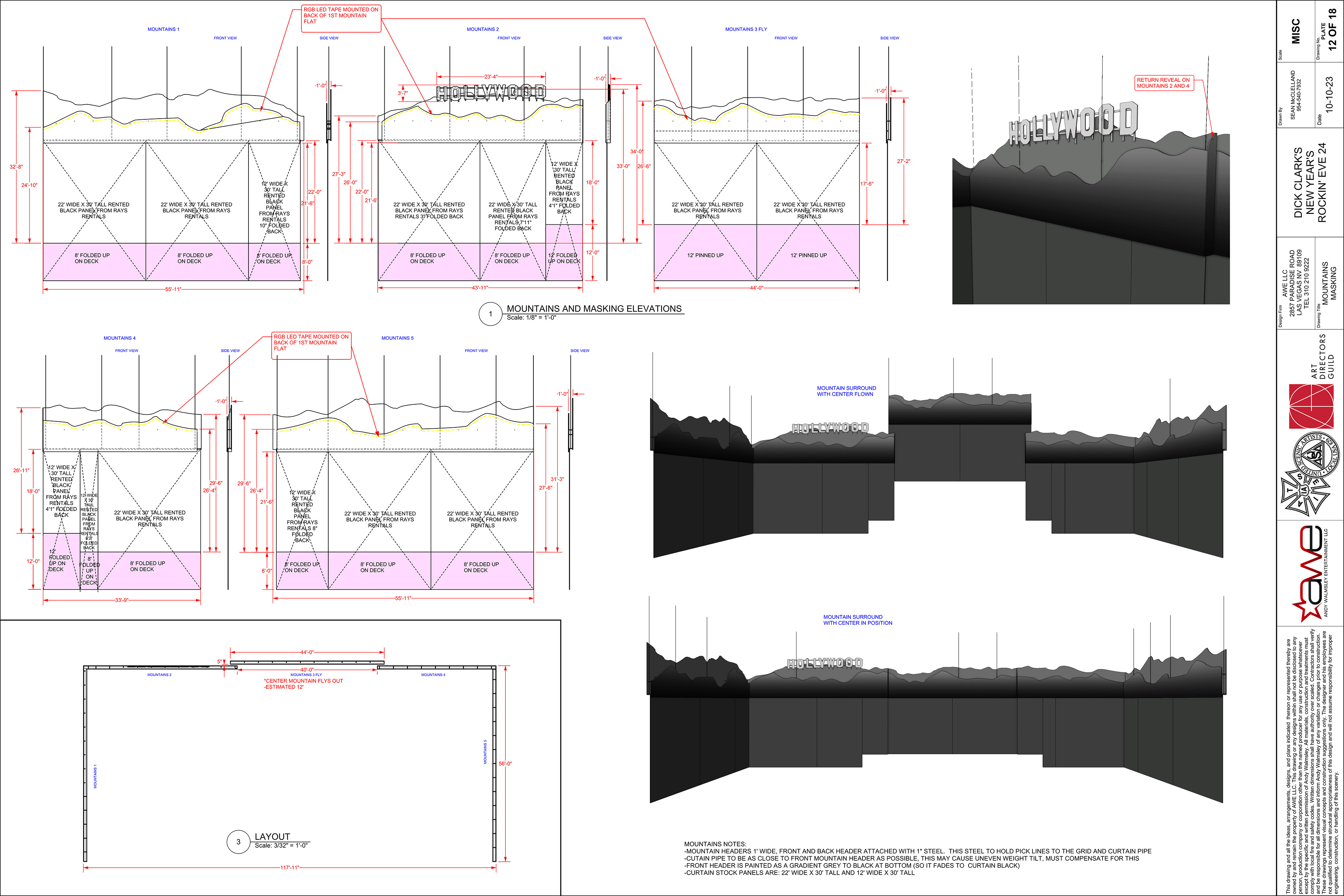

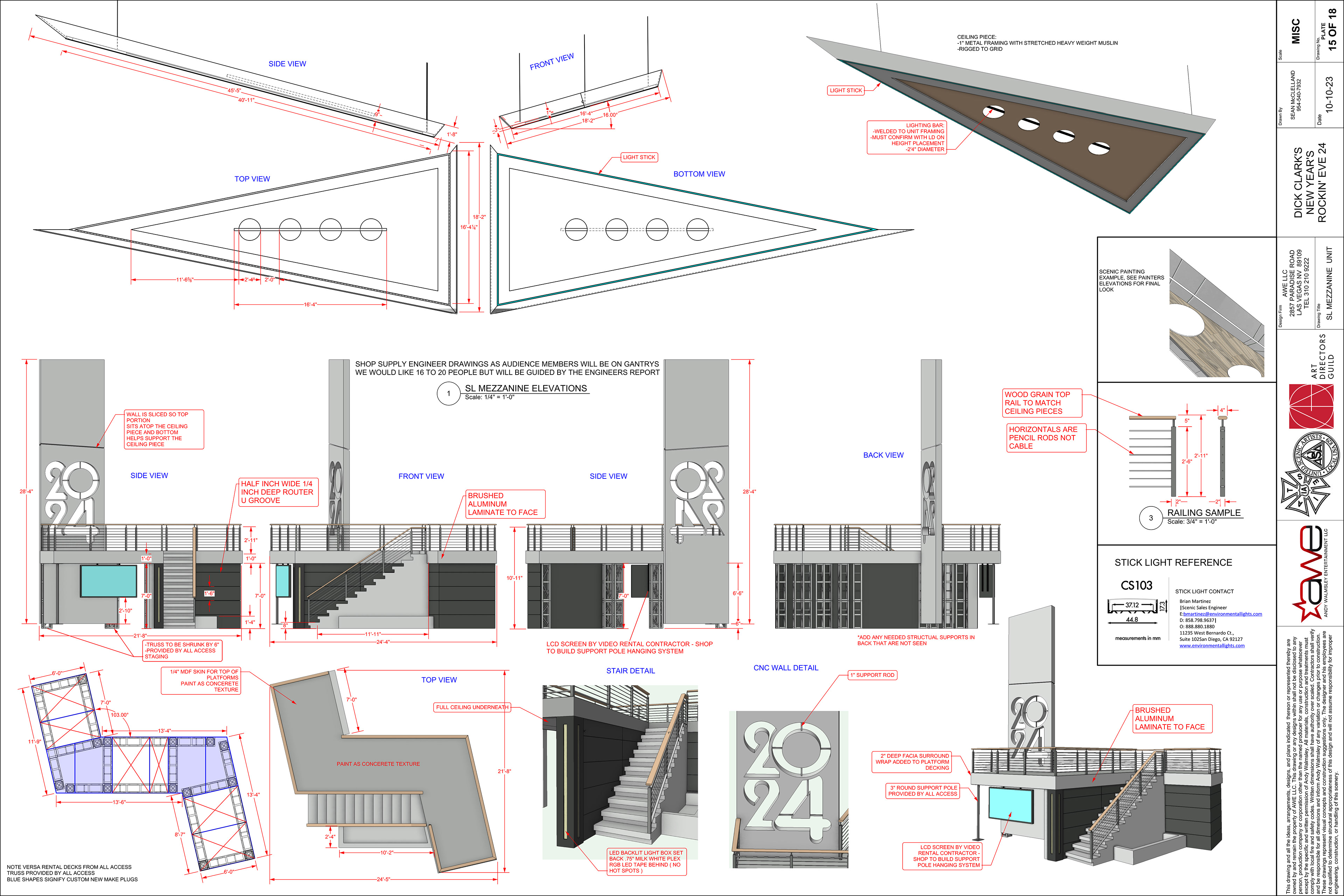

SAMPLE DRAFTING
SAMPLE DRAFTING
SAMPLE DRAFTING
SAMPLE DRAFTING
